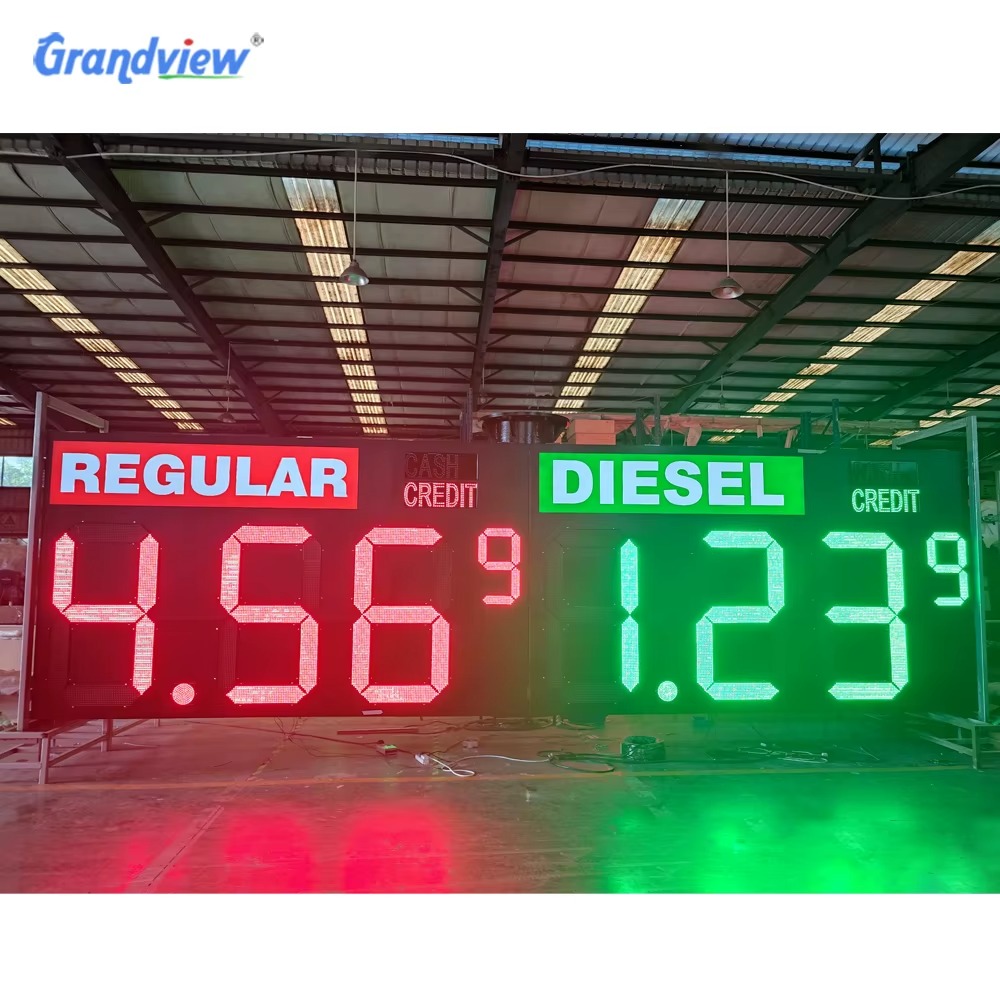

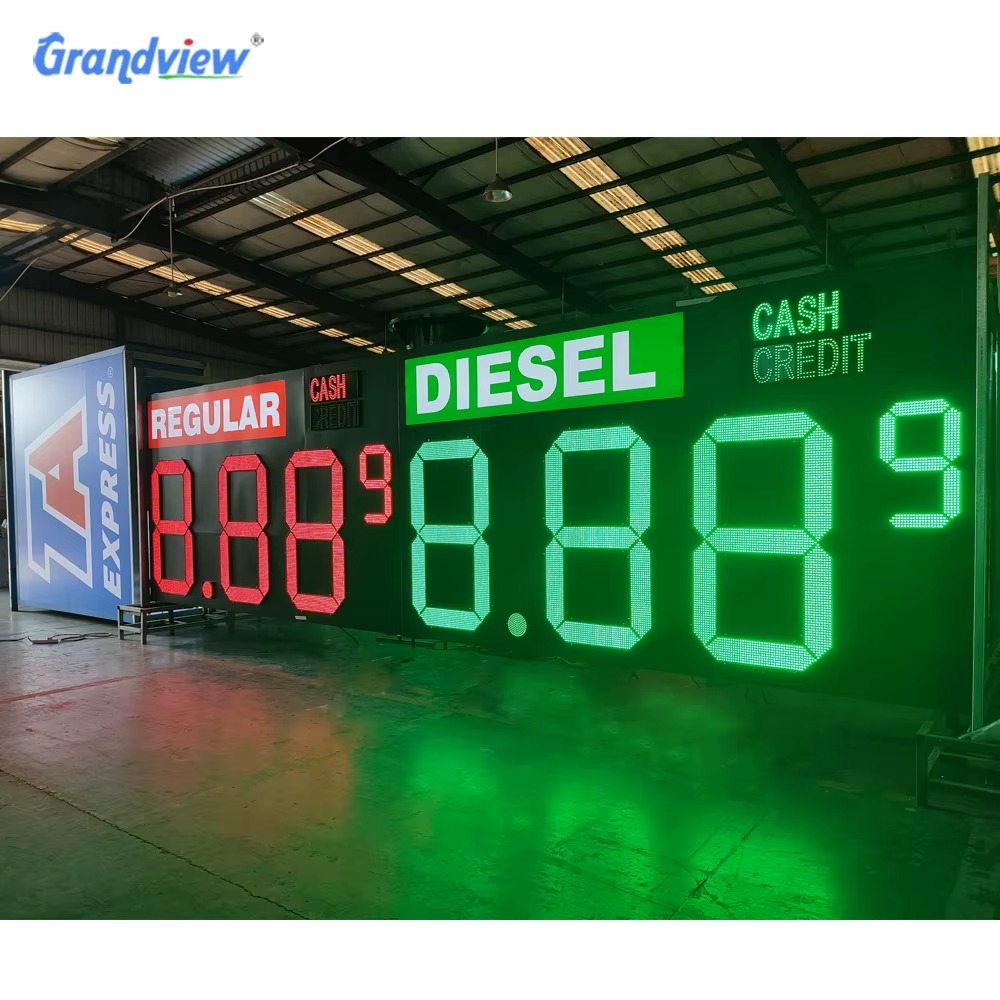

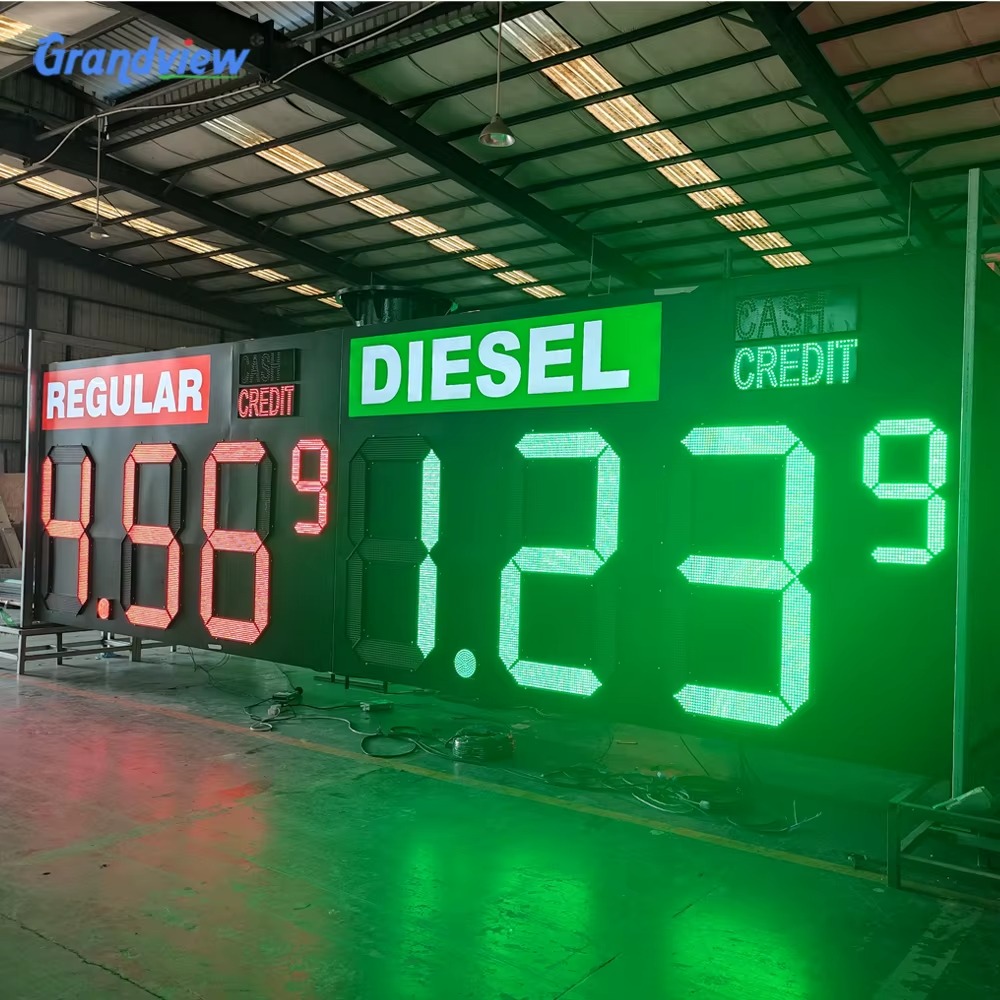

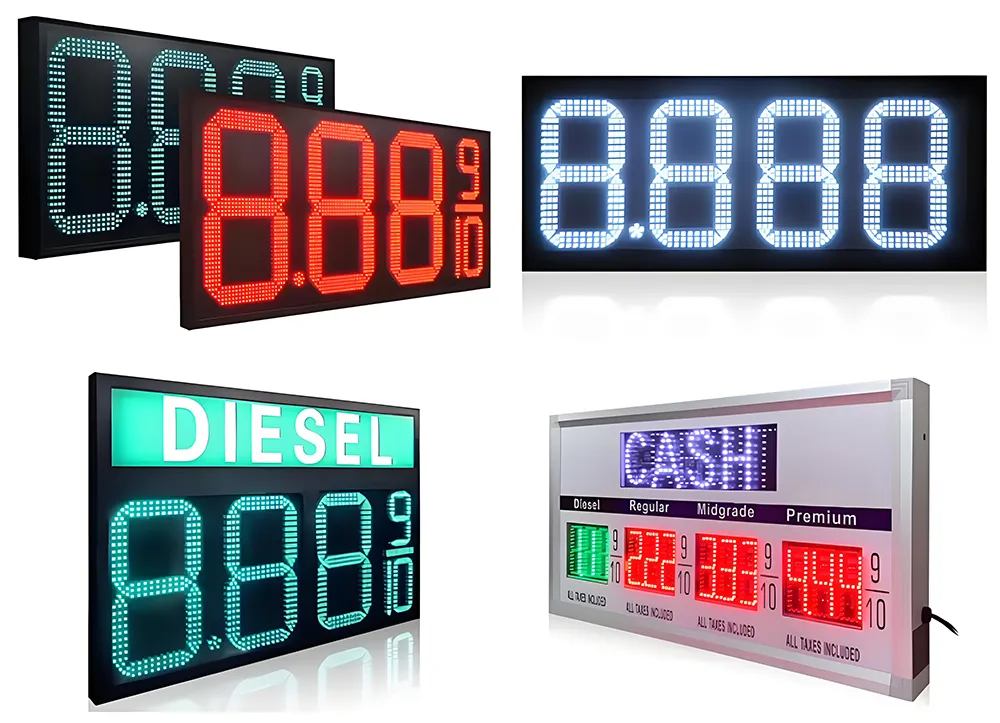

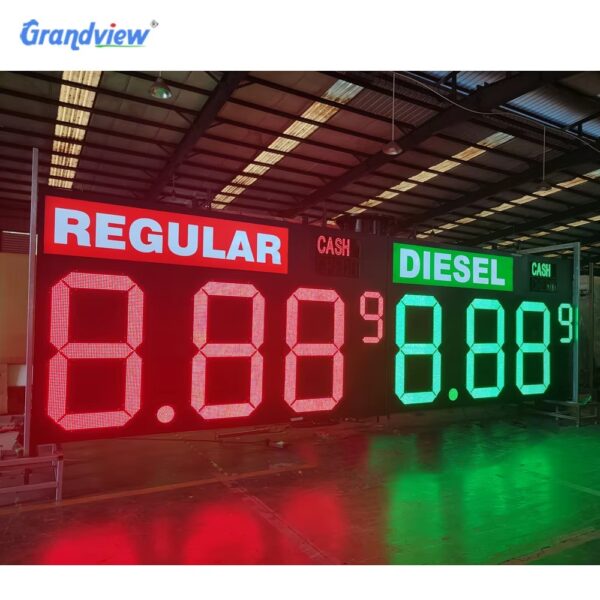

Led Gas Station Price Signn Led Pylon Sign Remote Control Digital Single/double Display Custom Petrol Price Signage Outdoor

Modernize your gas station with our advanced LED price pylon sign, designed for maximum visibility and easy management. This customizable display solution features bright, energy-efficient LED digits that are clearly readable both day and night, making your fuel prices instantly noticeable to passing motorists. Available in single or double-sided configurations, the sign can be effortlessly updated via remote control, saving you time and effort. Built with weather-resistant materials and anti-UV protection, this durable outdoor signage withstands harsh environmental conditions while maintaining its brilliant display. The high-contrast digits ensure clear visibility from long distances, helping drive more customers to your station. Perfect for gas stations, fuel retailers, and service stations, this professional-grade price sign combines reliability, convenience, and outstanding visibility to enhance your business presence.

Introduction



LED Chips parameter
Color Brightness Wave Length Current Operating Voltage Viewing angel LED Chips size Color temperature Luminous flux
RED 4000mcd 620-630 60MA 1.9-2.4V 60°/120°
/180°
10*20Mil 620-650K 2LM
GREEN 10000mcd 515-525 3.0-3.4V 515-525K 3LM
BLUE 8000mcd 515-525 2.5-3.0V 460-470K 3LM
YELLOW 3500mcd 585-590 1.9-2.2V 588-595K 1.5LM
WHITE 12000mcd 0 3.0-3.4V 6000-7000K 5LM
SERIES PARAMETERS
Item Technical Parameters
Color: Red, Amber, Green, Blue, White
Digit Height: 6″, 8″, 10″, 12″, 15″, 18″, 20″, 22″, 24″, 32″, 64″, 72″
Digit Design: 7 segments modules are sealed with glue,reach IP67 waterproof grade,with dust shade that make leds work normally all the time.
Brightness Control: Auto dimming by brightness sensor
Display Dimming: Over 8 levels of automatic intensity adjustment
Viewing Angle: Horizontal:60°-120°,Vertical: 60°-120° or customized
Service Access: Front or rear open
Master/slave: Single sided or double sided, master/slaves available
Cabinet Material: Iron cabinet or aluminum alloy frame
Waterproof Level: IP53 with aluminum alloy frame, IP65 with iron cabinet
Led Driving Mode: Constant current
Power Input: 110/220V AC,50-60HZ
PC Communication: RS232/485;LAN(TCP/IP) with cables or wireless,customer can choose
Communication Distance: Max.15 meters for RS232, 1200 meters for RS485
Remote Control Type: RF remote control (Normal 6 buttons or LCD remote controller)
Continuous Working Time: Unlimited
Lifetime of Leds: 100,000 hours
Installation Method: Hanging,mounting or per custom design
Working Temperature: -40°C~75°C
Display Format: 8.88, 8.888,8.888, 8.889/10, 88.88, 88.888 etc.

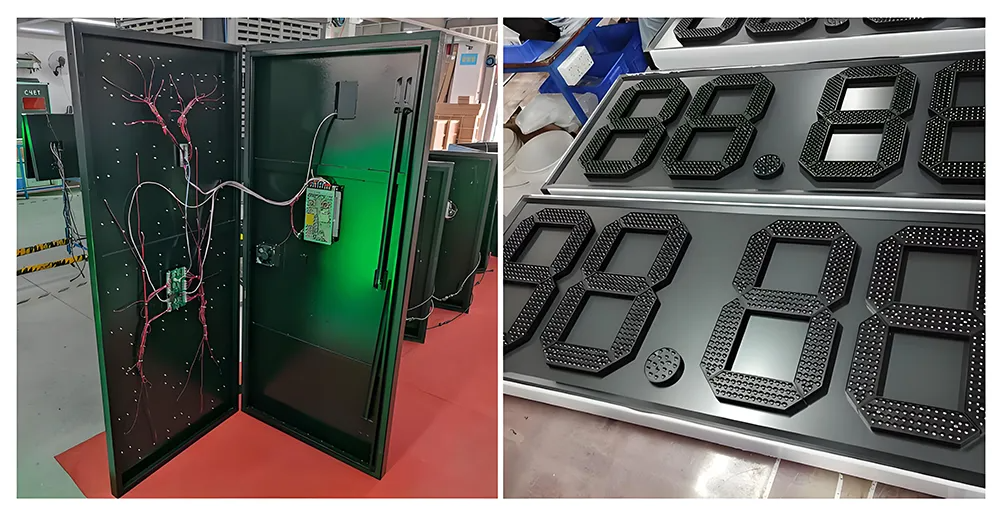

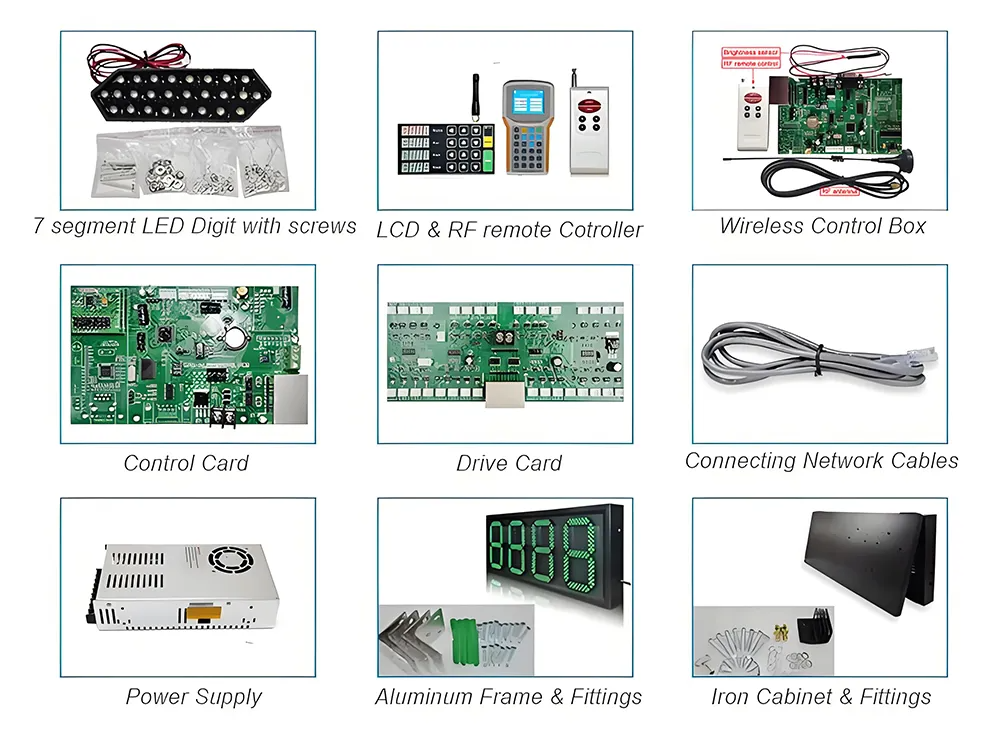

Detailed Images

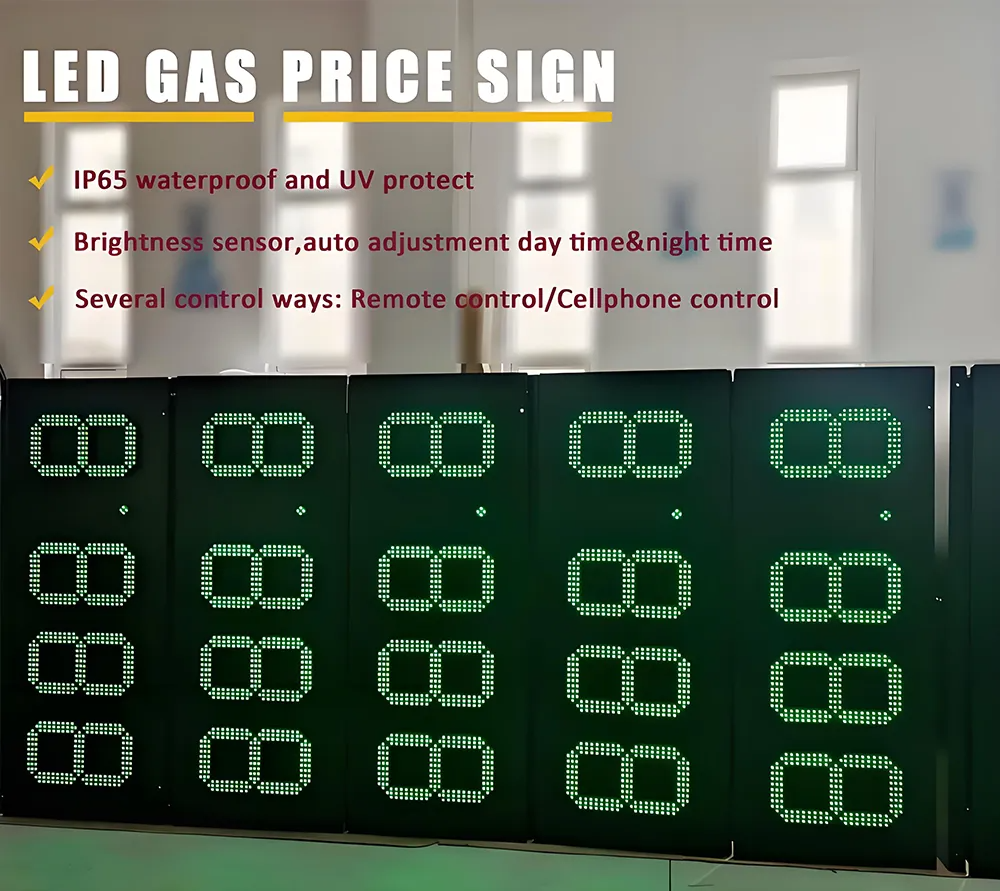

Features:
*led highlight number,easy catch people’s eys on high way
* material of the cabinet can choose iron,aluminum ,simple box
IP 65 waterproof case
It can use as gas price sign, countdown, time, tempreture, scoreboard, speed limit and so on.

Easy to instal,which can assemble any formats you want. 8.8. , 8.8.8., 8.8.8.8. , 8.8.8.8.8. etc.

Control Way

Control Way: RF remote Control


Control Distance: 30m -100m

Brightness Grade: 8 grades by automatic adjustment

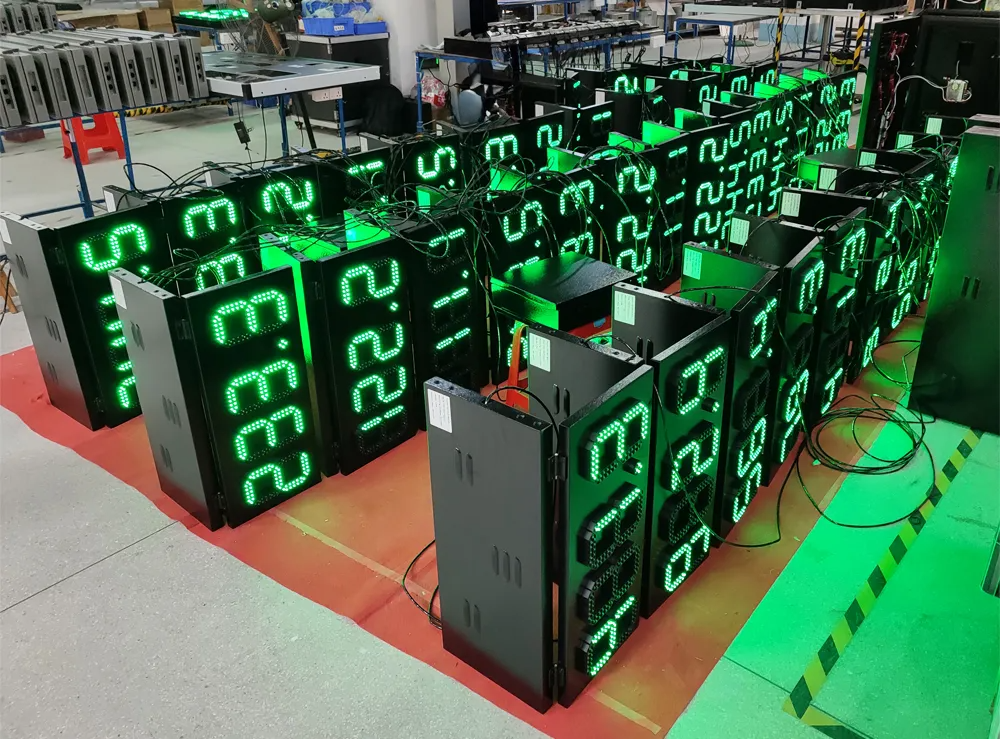

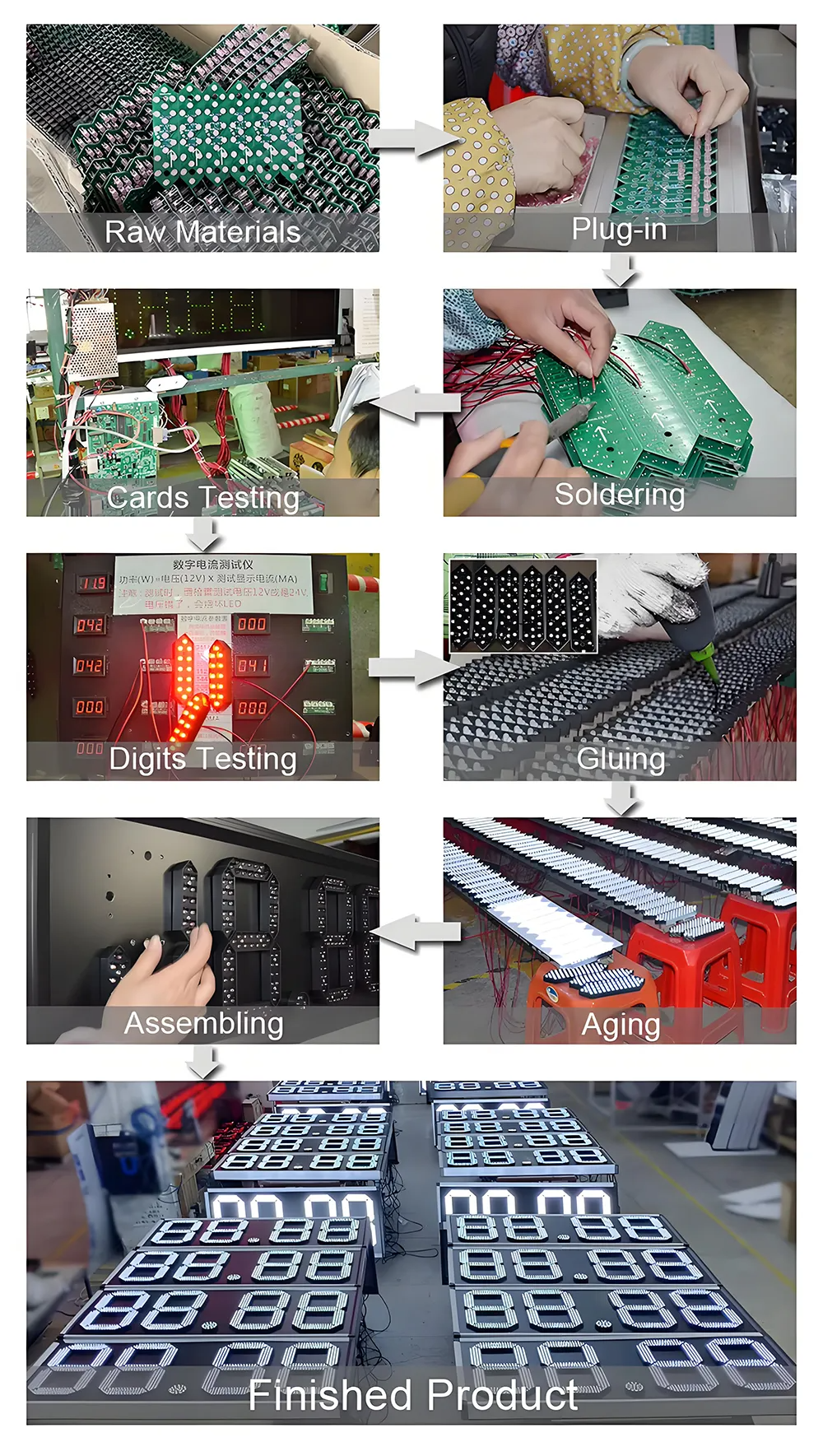

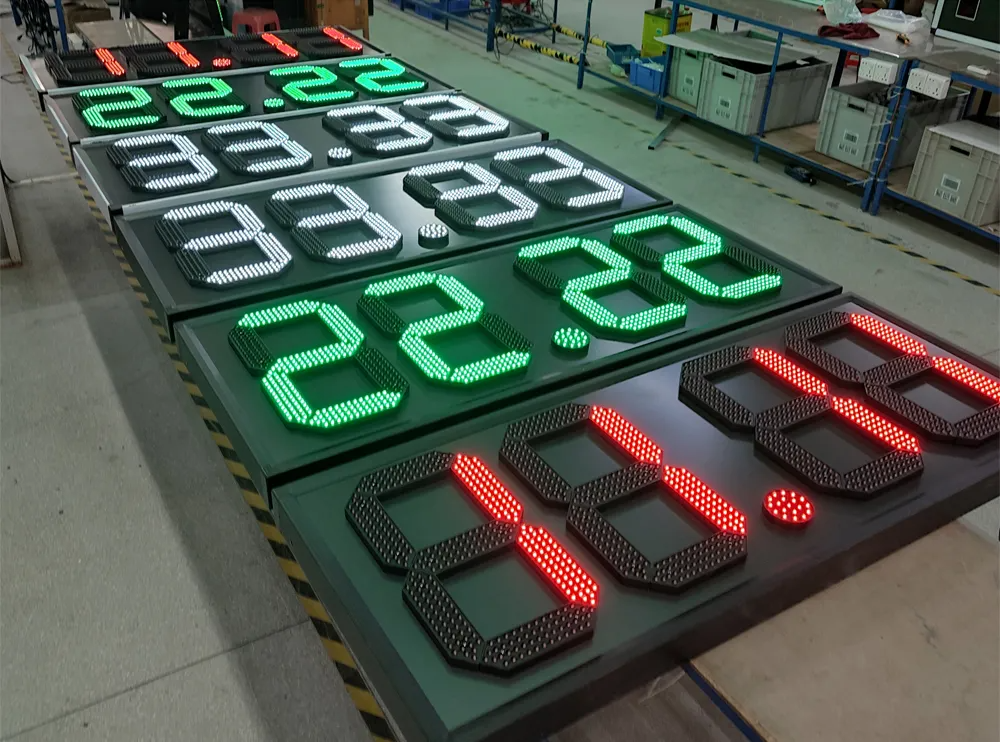

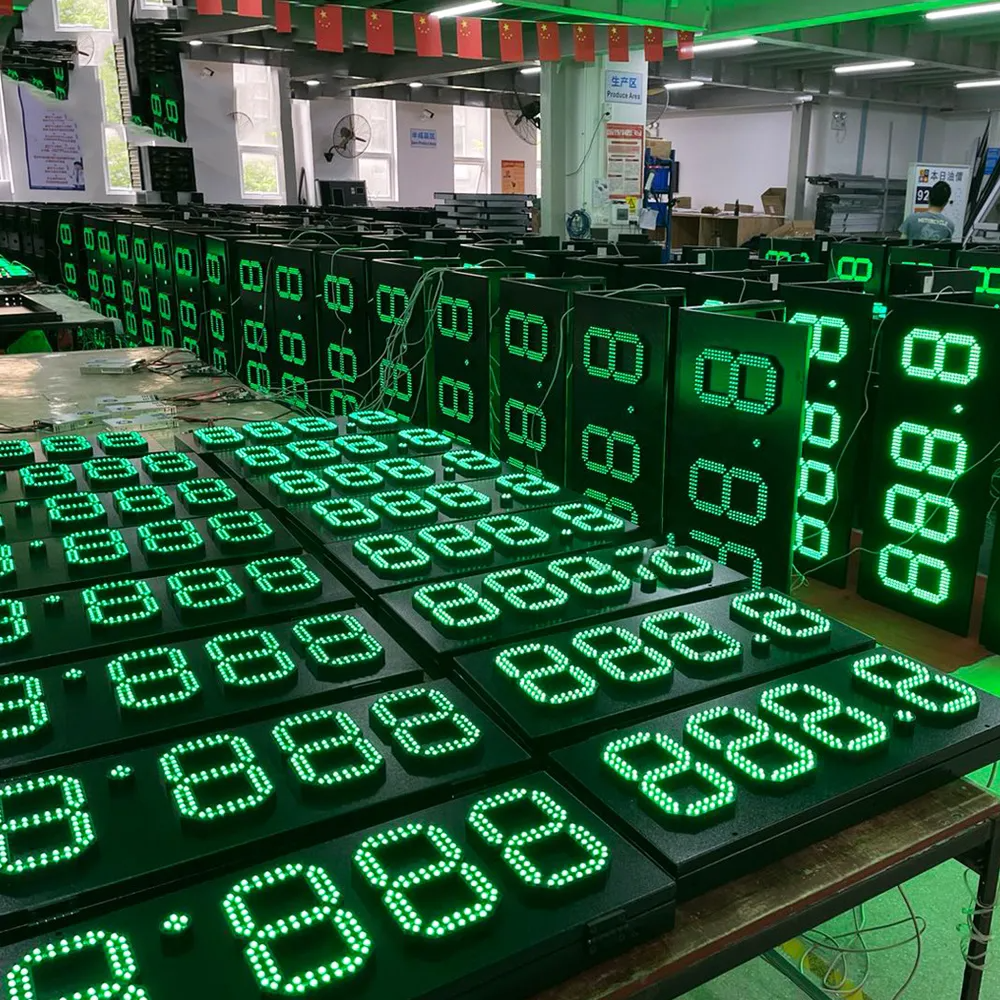

Production line

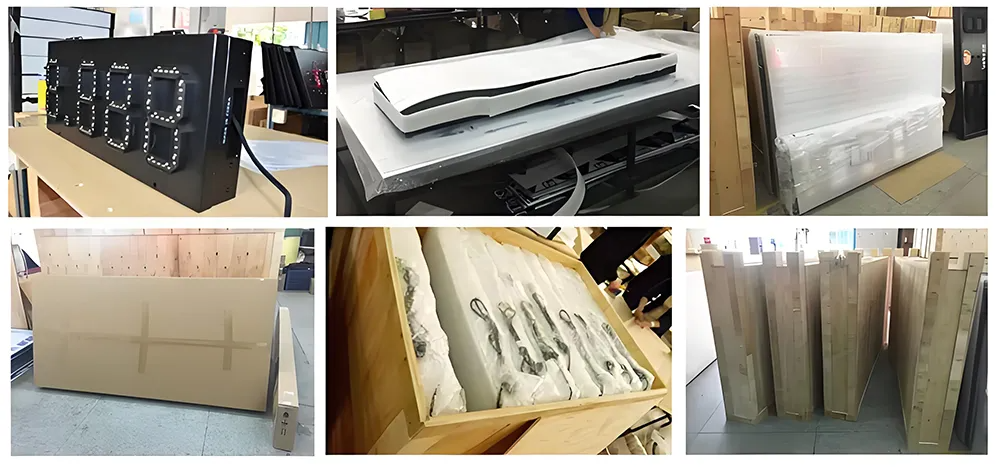

Packing

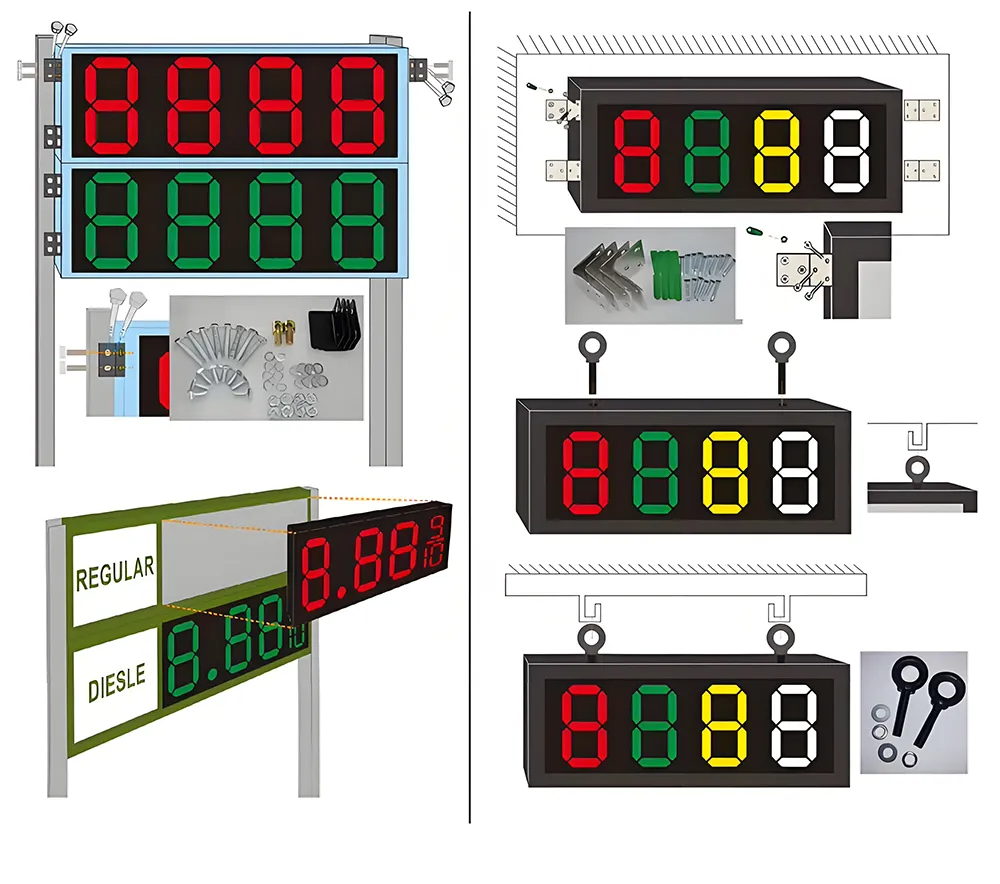

Installation Instructions

FAQ

Question 1:  Led digits sign can not work well, some led modules can not be lighting.
Answer :
A.Please check the connecting cables of drive card whether it is loose or not,and connect them again.
B.LED module is broken, please replace the new module to the led sign.
C.Please set the correct quantity of the numbers.For example: 88.88, 8.889/10 is 4 numbers.(Single sided or double sided are the same).
D.Please check drive card’s 2pin ports,and connect to other 2pin ports or change led number.

Question 2:  All the led digits are not lighting.Some led signs are controlled together, but only the sign which has control (main) card can work, the other signs can not work.
Answer :
A. Please use the multi-meter to check power supply whether it is on or off.
B. And please connect the power supply cables again.
C. Please check power supply whether it is 12V.

Question 3:  Some led signs are controlled together, but only the sign which has control (main) card can work normally, the other signs can not work well.
Answer :
A. Please check the cables of control card and connect them again.
B. Please use the RF remote controller to set the numbers again.
C. Please check the connecting cable of control card and drive card.
D. Please check IN and OUT port.
E. Please connect them again.
F. Please check control card’s signal light is on.
