OUTDOOR COMMERCIAL DISPLAY

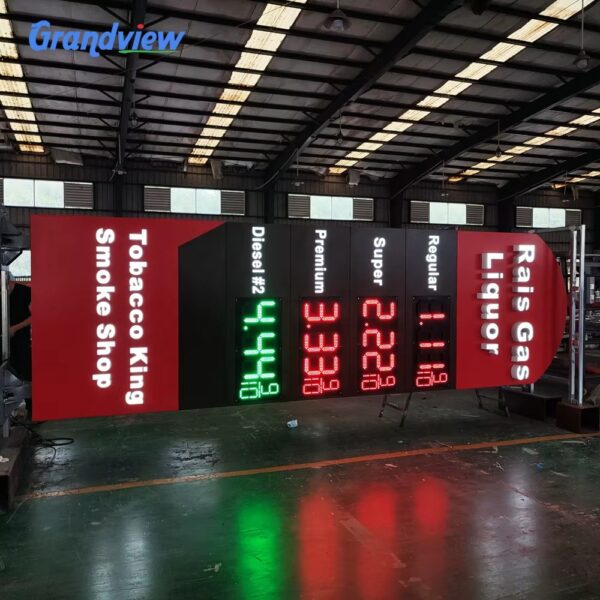

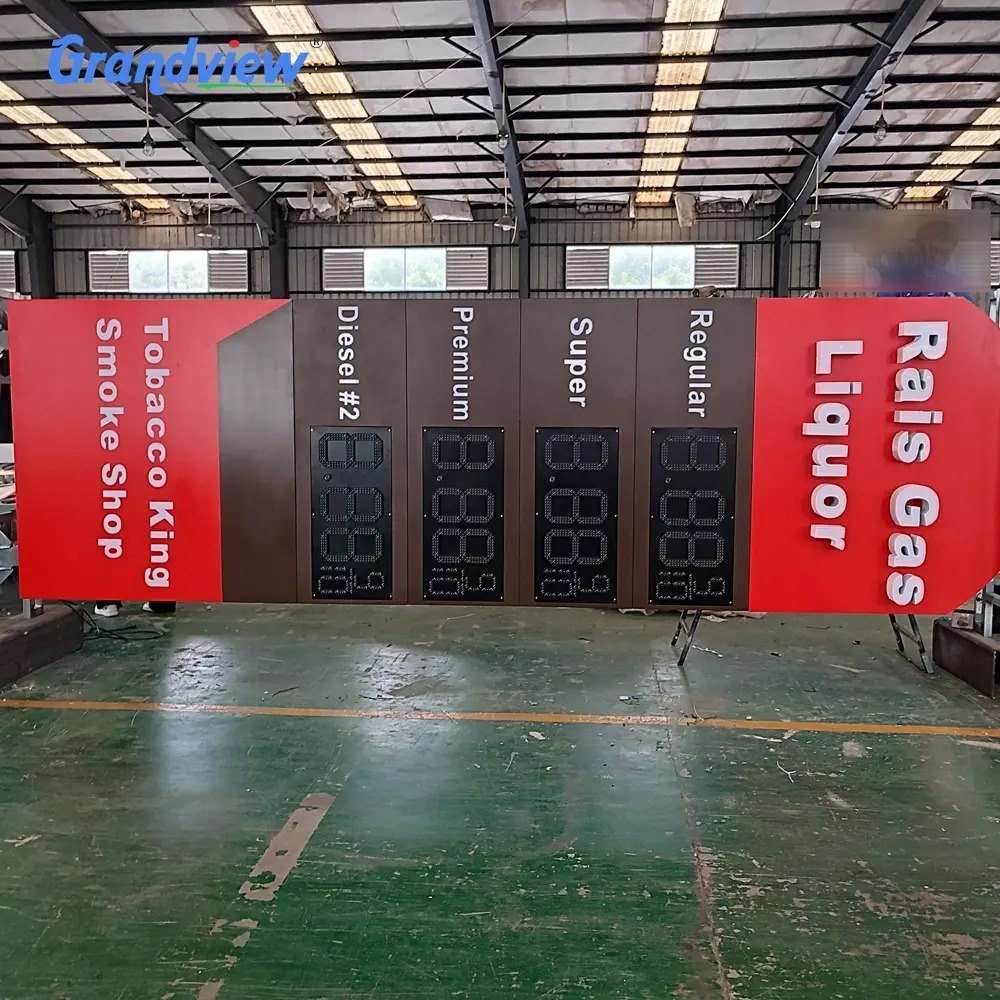

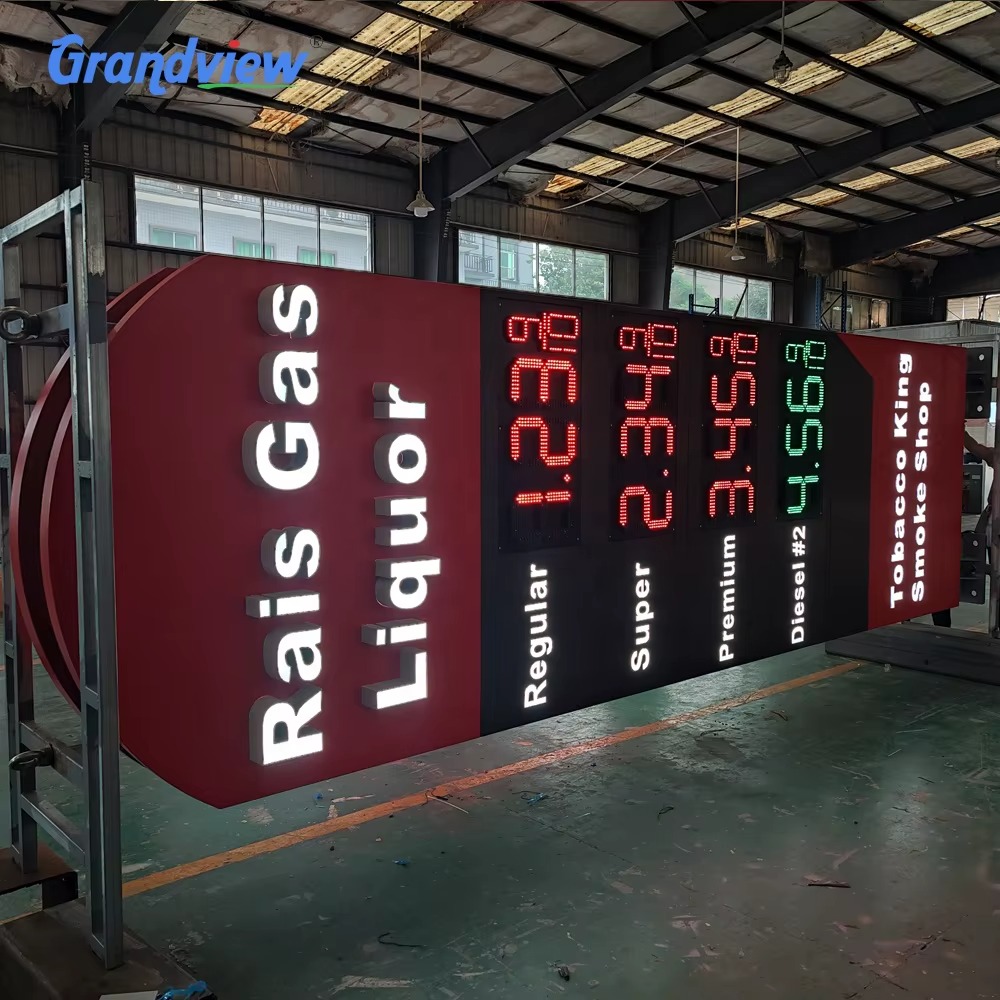

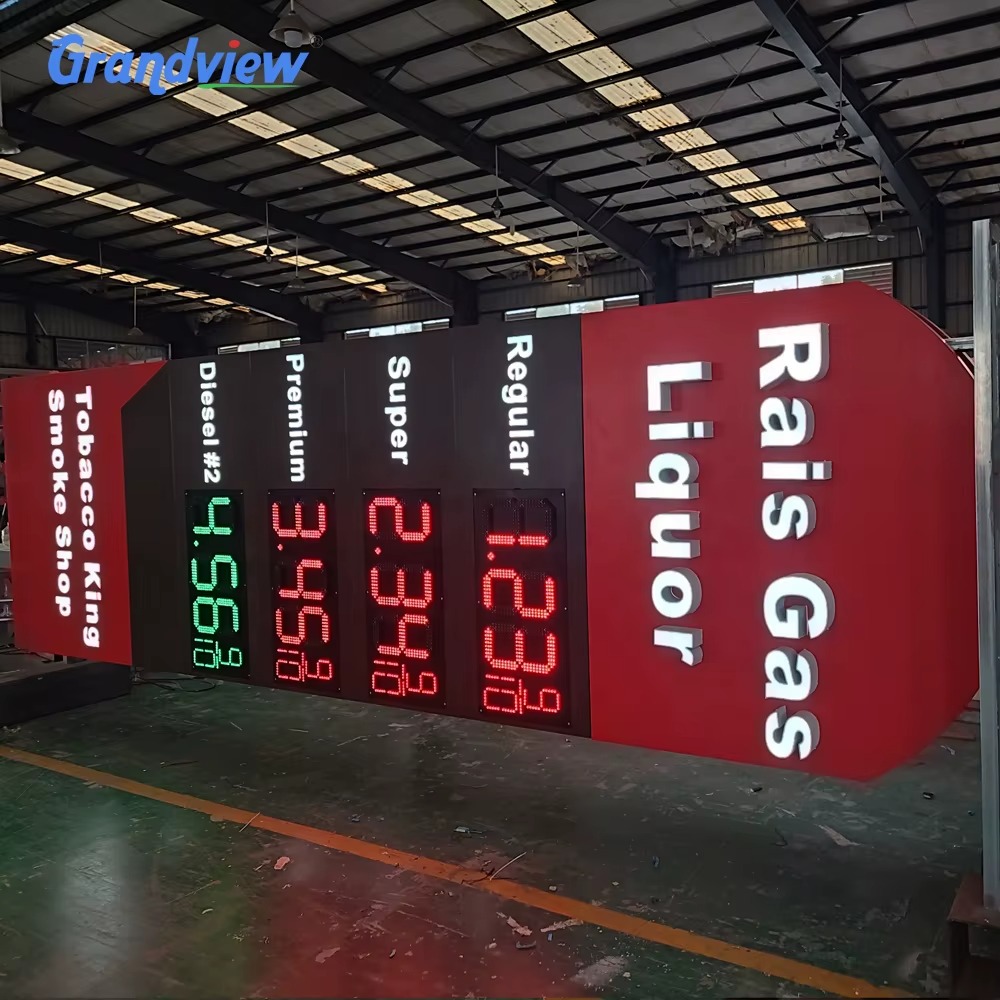

Petrol Station Standing LED Pylon Sign 3d logo Gas Station Price Board
This LED gas price pylon sign combines illuminated branding with clear fuel price displays for strong roadside visibility. Custom logos, colors, sizes, fuel grades, and LED digit layouts are available. Designed for gas stations, petrol stations, and fuel retail locations.
Remote price control
12″ & 16″ digit options
Single- or double-sided
Description
This LED gas price pylon sign combines illuminated branding with clear fuel price displays for strong roadside visibility. Custom logos, colors, sizes, fuel grades, and LED digit layouts are available. Designed for gas stations, petrol stations, and fuel retail locations.
What's included
Price Control Remotes
Wireless Control Box
Steel Cabinet & Fittings
Aluminium Frame Option
Product specifications
Size & layout
- Digit sizes
- 12-inch or 16-inch
- Price format
- Four digits with one decimal place (888.8)
- Display faces
- Single-sided or double-sided
Display
- LED colours
- Red · Green · Yellow · White
- Digit design
- Sealed seven-segment LED modules
- Viewing angle
- 60°–120° horizontally and vertically
Price control
- Price updates
- RF remote control
- Brightness
- Automatic adjustment by ambient-light sensor
- Dimming
- More than eight automatic brightness levels
Construction
- Cabinet
- IP65-rated steel cabinet
- LED modules
- IP67-rated sealed segments
- Operating temperature
- −40°C to +75°C
- LED rated life
- More than 100,000 hours
Loaded with Features.
A closer look at your display.
Inside the LED digits
Individual LEDs form each seven-segment digit, creating a clear, well-defined price display.
BRANDS WE WORK WITH
CHANGE PRICES BY REMOTE
Change the displayed price with the supplied RF remote.
MADE FOR OUTDOOR DISPLAY
An IP65-rated steel cabinet and automatic brightness adjustment support outdoor use.
SIZES & TECHNICAL SPECS
| Digit size | 12-inch or 16-inch, as selected |
|---|---|
| LED colours | Red, green, yellow or white |
| Display layout | Four-digit price with one decimal place (888.8 format) |
| Display sides | Single-sided or double-sided, as selected |
| LED modules | Sealed seven-segment design; IP67-rated modules |
| Cabinet | IP65-rated steel cabinet |
| Brightness | Ambient-light sensor; more than eight automatic adjustment levels |
| Viewing angle | 60°–120° horizontally and vertically |
| Price control | RF remote |
| LED drive | Constant current |
| Power input | 110/220 V AC, 50–60 Hz |
| Operating temperature | −40°C to +75°C |
| LED rated lifetime | More than 100,000 hours |
IP67 applies to the LED modules; IP65 applies to the steel cabinet. Check the electrical label on your unit before installation.
CONTROL & POWER
Use the RF remote to change the displayed price without opening the sign. Automatic brightness adjustment responds to changes in ambient light.
Power input: 110/220 V AC, 50–60 Hz. Check the electrical label on your unit and local wiring requirements before installation.
INSTALLATION & SUPPORT
The IP65-rated steel cabinet is designed for outdoor installation. Front or rear service access and mounting or hanging arrangements depend on the version selected.
Check the model drawing, mounting points and electrical requirements before installation. Contact Grandview for the details of your order.
Frequently asked questions
Answers to common questions about choosing and installing your LED gas price display.
How do I change the displayed fuel price?
Use the RF remote supplied with your display to update the price digits.
Should I choose 12-inch or 16-inch digits?
Choose 12-inch for a more compact display or 16-inch for larger digits. Check the available space in your sign and the approach from which drivers will view it before selecting a size.
Which LED colours and display sides are available?
The standard options are red, green, yellow or white LEDs, with single-sided and double-sided versions. Select your combination in the product options above.
Does the brightness adjust automatically?
Yes. The display adjusts its brightness automatically between day and night as the surrounding light changes.
Is the display suitable for outdoor use?
Yes. The steel cabinet is IP65-rated, and the sealed LED modules are IP67-rated.
Can it fit inside my existing roadside sign?
Check the opening, mounting points and electrical requirements against the drawing for the 12-inch or 16-inch version you select.
What power input does the display need?
Power input is 110/220 V AC, 50–60 Hz. Check the electrical label on your unit and local wiring requirements before connecting power.
