A roadside car wash pylon sign needs to catch attention fast. Drivers may only have a few seconds to see the sign and understand the business.
For the Kroozin Mega project, we built a 28-foot double-sided pylon sign with illuminated branding and a full-color LED screen.
The main challenge was simple: the LED screen needed to stand out, but it could not overpower the brand.
So, we divided the sign into clear visual sections.
Project Overview

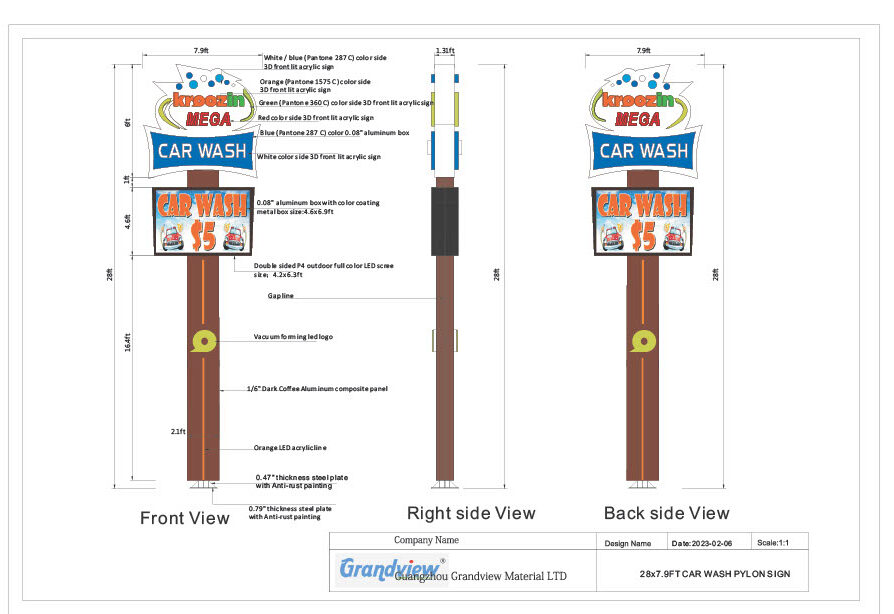

| Project Detail | Specification |
|---|---|
| Sign Type | Double-sided car wash pylon sign |
| Overall Height | Approx. 28 ft |
| Sign Width | Approx. 7.9 ft |
| Side Depth | Approx. 1.31 ft |
| Digital Display | Double-sided P4 outdoor LED screen |
| LED Screen Size | Approx. 4.2 × 6.3 ft |
| Branding | Illuminated Kroozin Mega logo |
| Main Message | Illuminated CAR WASH sign |
| Structure | Galvanized steel frame |
| Foundation | Reinforced concrete foundation |
Clear Branding Comes First
First, drivers need to know what the site is.
That is why the Kroozin Mega logo sits at the top. Next, the large CAR WASH section explains the service. Finally, the LED screen shows changing promotions.
The layout follows a simple order:
Brand → Service → Promotion
This order matters.
For example, the business can change the LED content at any time. However, the main brand and service message always stay in the same place.
As a result, drivers can recognize the location more quickly.
The LED screen adds flexibility, while the illuminated logo keeps the brand clear day and night.
For similar roadside sign projects, see our custom pylon signs.
A 28-Foot Sign Needs a Strong Structure
A large sign needs more than an attractive face.

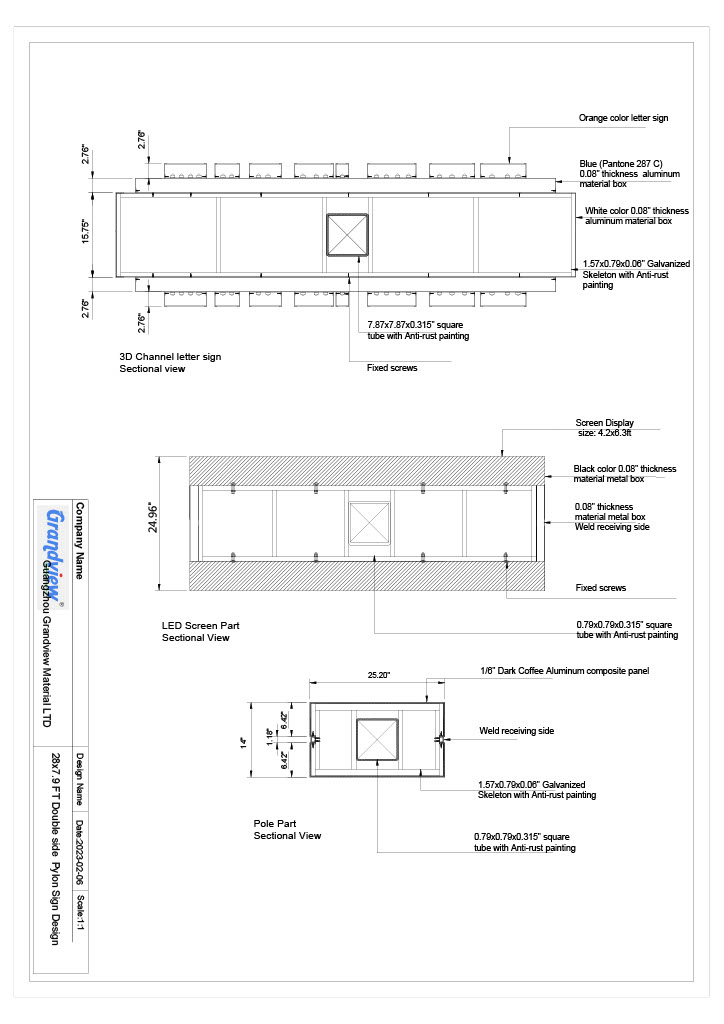

Therefore, we also planned the internal support around the full sign size.
The structure uses a galvanized steel frame with anti-rust treatment. In addition, the lower column uses dark aluminum composite panels and illuminated decorative details.

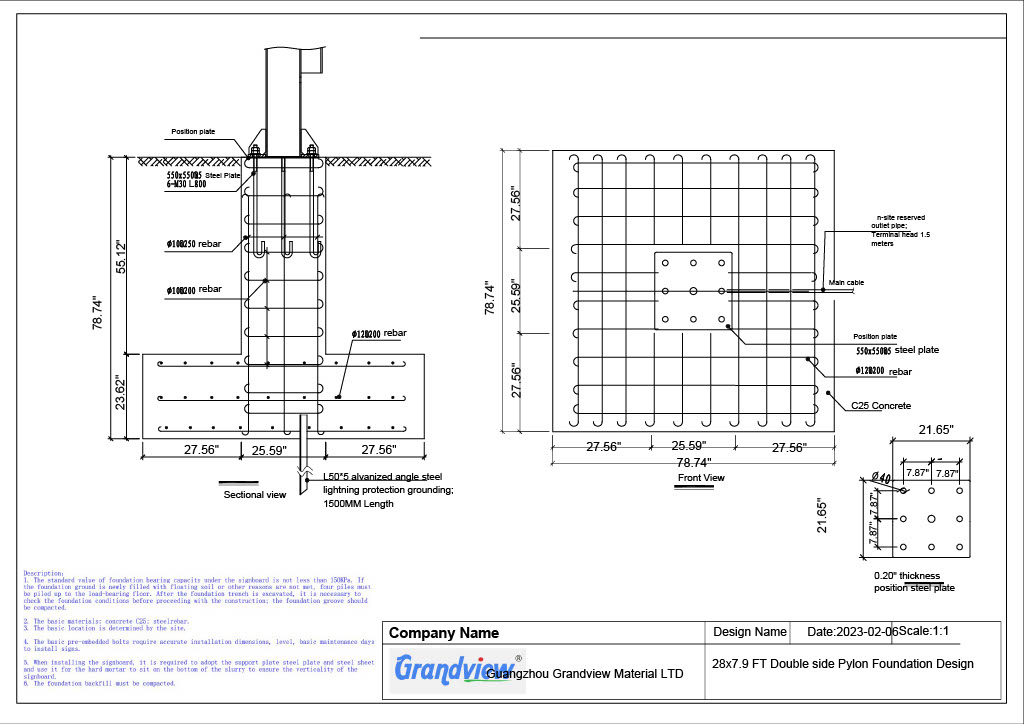

We also prepared a separate foundation drawing.
The drawing shows the concrete footing, steel reinforcement, positioning plate and anchor points.
These details are important because the sign supports several large parts. These include the LED screen, illuminated logo and upper sign cabinets.
Also, wind creates more pressure on a tall double-sided sign.
For this reason, the local engineer should check the final foundation and installation before construction. Site conditions and local codes can change the final requirements.
Factory Testing Before Shipment

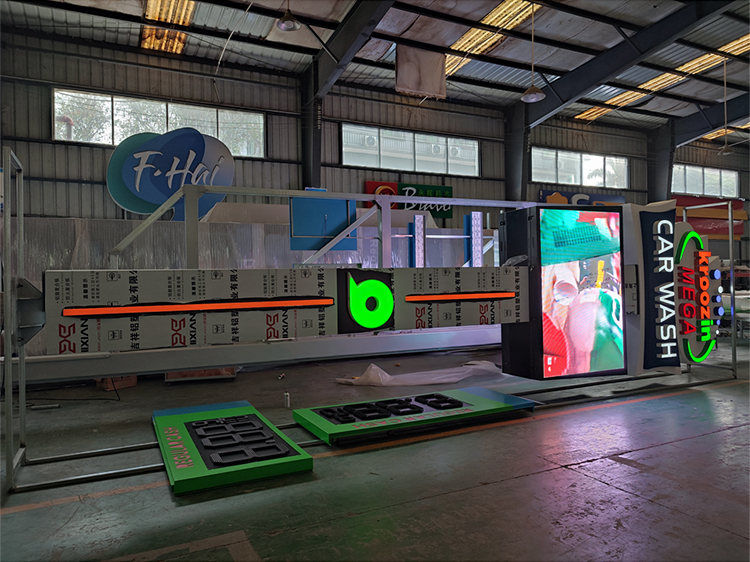

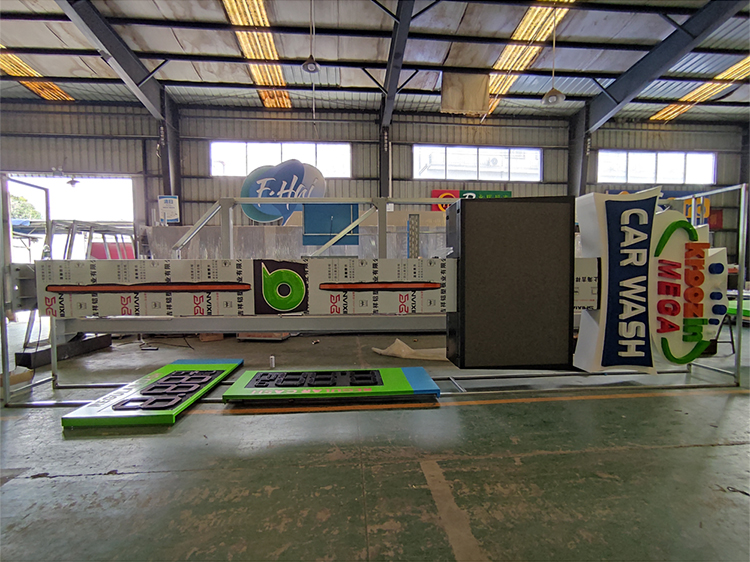

Before shipment, our team assembled the main sign sections inside the factory.

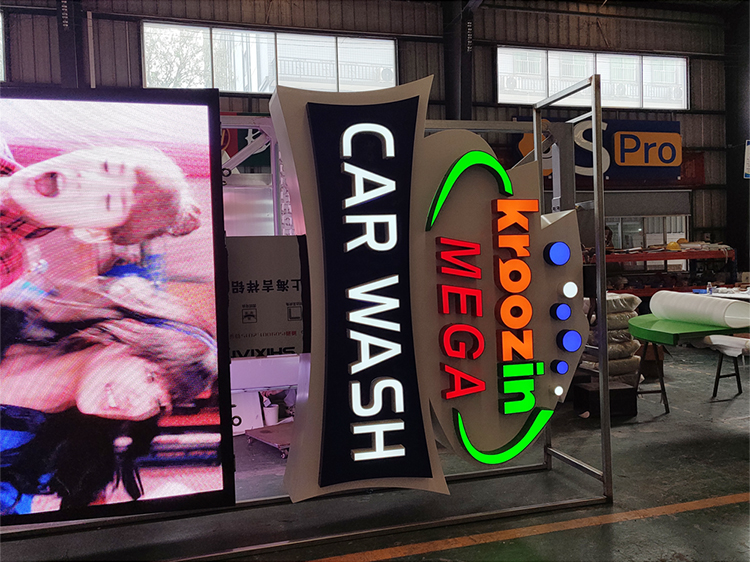

Then, we powered the LED screen, logo and CAR WASH letters at the same time.
This full test helped us check:
- LED screen operation
- Logo and letter lighting
- Color appearance
- Sign alignment
- Wiring performance
- Overall proportions
Testing the complete sign also makes visual problems easier to find.
For example, one section may look correct by itself but feel too large after assembly. Therefore, full factory testing gives us a better view of the finished design.
It also helps reduce adjustment work after the sign reaches the project site.
Why This Car Wash Pylon Sign Works
This project works because each part has one clear job.
The logo shows the brand.
The CAR WASH letters explain the service.
The LED screen shows changing offers and promotions.
Meanwhile, the steel structure supports all three parts as one complete sign.
Because of this clear hierarchy, the sign does not look crowded even though it includes several illuminated elements.
This approach works well for car washes, service stations, truck stops and other roadside businesses.
These locations need clear signs because drivers often make decisions while moving.
Illuminated branding can also work with our LED letter signs.
FAQ
Can a car wash pylon sign include an LED screen?
Yes. You can combine an LED screen with illuminated logos and letters. However, the screen should support the brand instead of taking over the whole sign.
How tall should a car wash pylon sign be?
The right height depends on road visibility, nearby buildings, setbacks and local rules. This Kroozin sign reaches about 28 feet.
Can you provide foundation drawings?
Yes. We can prepare structural and foundation reference drawings for the sign. However, a local engineer should confirm the final design before installation.
