LED signs at a gas station do several jobs. They show fuel prices, identify the brand, light the canopy and store, and help guide traffic. The LED gas price sign needs the most careful planning. Drivers must be able to read the changing prices while they are moving.
A suitable sign must match the road and the site. Key factors include viewing distance, road speed, traffic direction, digit size, price rows, brightness, power, and control method. The cabinet must also fit the pylon and allow easy service.
If these details are not clear, the sign may be hard to read or update. It may also be difficult to install or connect to the local power supply.
Key Takeaways
- Use digital LED digits for fuel prices. Use fixed LED lighting for logos, fascia, and building signs.
- Choose the price digit height based on real road conditions, not only on the total pylon size.
- Confirm fuel grades, price rows, display faces, voltage, and control method before production.
- Specify the full cabinet and service plan, not only the LED modules.
Where to Use LED Signs at a Gas Station
Each sign has a different job. A roadside display helps drivers check prices. Canopy and store signs help them find the station and recognize the brand.
A full package may include an LED pylon sign, LED canopy signs, illuminated channel letters, and convenience store signs.
| Location | Suitable LED use | What to confirm | Main risk |
|---|---|---|---|
| Roadside pylon or monument | Fuel price digits and illuminated logo | Price rows, digit size, color, display faces, control, and service access | Prices may be hard to read, or the display may not fit |
| Canopy fascia | Illuminated logo, lightbox, or brand line | Logo size, face material, LED layout, power, fixing, and access | Uneven lighting or difficult maintenance |
| Convenience store façade | Illuminated channel letters, logo, or cabinet sign | Letter size, materials, mounting, and cable route | Poor visibility or conflicts with the building |
| Pump island | Pump numbers and product signs | Position, clearance, power, cleaning, and impact risk | Visual clutter or physical damage |
| Entrance, exit, and direction signs | Illuminated lightbox where night visibility is needed | Arrow direction, sign faces, position, and brightness | Wrong directions, glare, or blocked views |
Not every sign needs LED lighting. Reflective signs may work for some directions. Local rules may also limit brightness. Choose each sign from the site plan and its purpose.
How to Specify LED Gas Price Signs

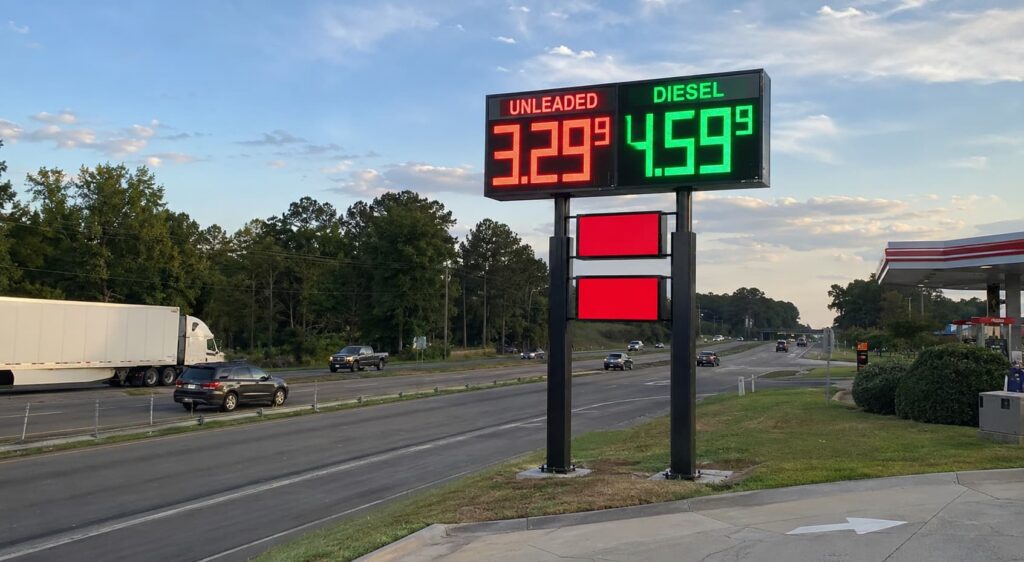

Check How Drivers Approach the Station
Start with the road, not the cabinet. Review each traffic direction. Note the viewing distance, road speed, angle, setback, and blocked views.
No digit height suits every station. Ask the supplier to mark the illuminated numeral height on a scaled drawing. Confirm whether the display needs one or two faces and how each face will be serviced.
Confirm the Price Layout First
List the fuel grades and price rows. Confirm the number style, currency symbol, and any small fractional digit. Decide whether the fuel names are fixed or changeable.
Choose a digit color that stands out from the background. Check the brand colors and local rules. Outdoor LED signs may need automatic dimming to reduce glare at night.
For displays treated as electronic message centers, the International Sign Association’s brightness recommendations may provide a useful reference. Final brightness settings should still follow local requirements.

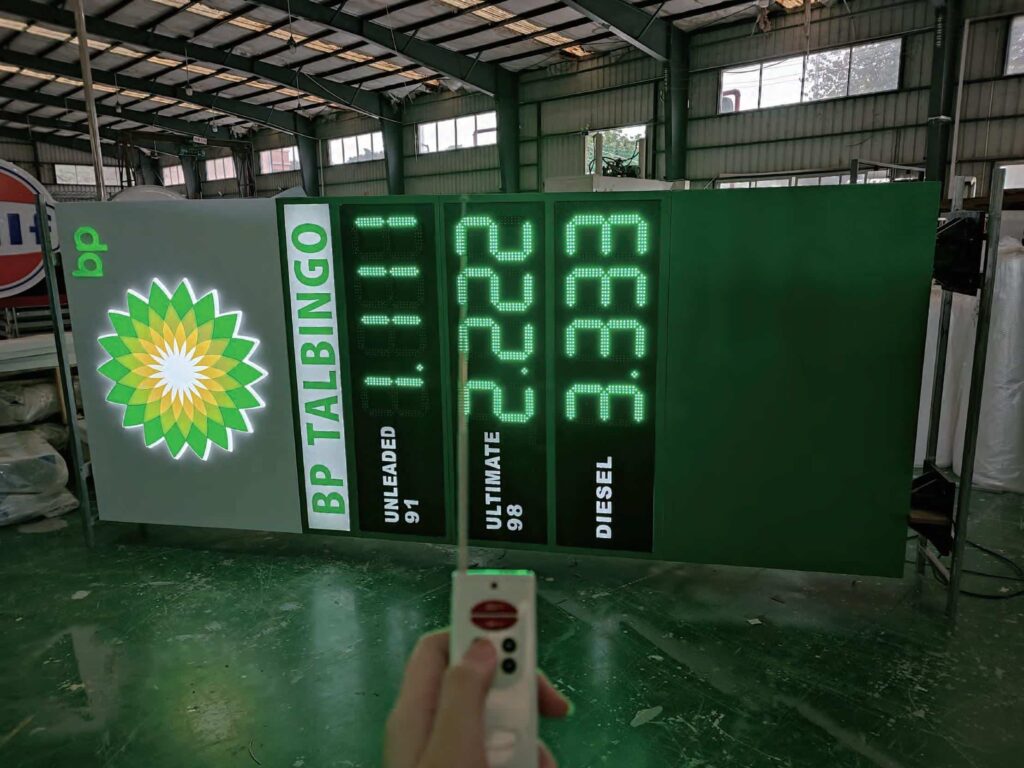

Choose a Control Method That Staff Can Use
The control method should be easy for station staff to use. “Remote control” does not always mean a phone app or point-of-sale connection.
| Control option | Best for | What to confirm |
|---|---|---|
| RF remote | One nearby price sign | Working distance, obstacles, and number of displays |
| Wired control | A fixed site with a planned cable route | Cable type, route, and controller location |
| Computer or LAN | Several displays on one site | Software, network access, and user permissions |
| Mobile or network control | Updating signs from another location | Signal, security, hardware, and support |
| Point-of-sale connection | Automatic price updates | System compatibility, data format, and testing |
Provide the local voltage and frequency. State how many displays must update together.
Plan the Cabinet and Maintenance Access
Confirm the cabinet, frame, coating, cable entry, drainage, and cooling. The design must control water, heat, and condensation.
Key parts should be easy to replace. Ask for wiring and installation drawings. A weather rating for one part may not cover the complete sign.
Match the Display to the Pylon and Structure
For a retrofit, measure the opening and depth. Show the mounting points, service door, cable route, and inside condition. A local contractor may need to check the old structure before reuse.
For a new pylon, plan the cabinet, steel support, foundation, and power together. Wind, snow, soil, electrical, and permit rules depend on the location. Confirm them with the local contractor, engineer, and authority.
For U.S. projects, the ASCE Hazard Tool can provide location-based wind and snow data. Final calculations remain subject to the local code and project engineer.
What Affects the Cost of LED Signs?
A useful quotation needs a clear project scope. A price per square metre is usually not enough.
Main cost factors include:
- Digit height, number of price rows, number format, quantity, and display faces
- Cabinet size, frame, aluminum or steel, cladding, coating, and custom shape
- LED color, dimming sensor, power supplies, controller, and communication system
- Logo, brand colors, drawings, engineering support, and spare parts
- Export packing, shipping, and installation scope
Compare quotes item by item. One may cover only the LED digits. Another may include the cabinet, branded panels, controller, wiring, packing, and drawings. Final cost depends on the confirmed design.
Common Mistakes That Cause Delays
- Choosing by total sign size: A large pylon can still have small price digits. Confirm the illuminated digit height on a viewing drawing.
- Changing the price layout too late: A new row can change the face, power, controller, and cabinet. Approve the layout before production.
- Assuming all controls are the same: RF, wired, mobile, network, and point-of-sale systems need different hardware. Approve the exact system.
- Quoting a retrofit from one photo: A front photo does not show depth, wiring, corrosion, or access. Send full measurements and inside photos.
- Checking local rules too late: Rules may cover size, brightness, structure, and wiring. Check them before final drawings.
For U.S. projects, Appendix H of the 2024 International Building Code is a useful sign-code reference. Its provisions only apply where they have been adopted by the local authority.
Project Example: Planning LED Signs for a BP Petrol Station
The BP petrol station signage design shows how several signs can work as one package. The pylon includes an illuminated logo and text, double-sided aluminum or ACP panels, and an LED price display. The panels use an electrostatic spray finish.
The price area can use seven-segment digits, multi-segment digits, or a full-graphic display. LED colors can include red, yellow, green, or white. The final choice depends on the approved design.
The design also uses LED lighting on the canopy, pump islands, and C-store fascia. It includes a service-bay logo and channel letters, plus double-sided entrance and exit lightboxes.
The internal supports, face materials, LED light sources, and concrete footing details are planned together. This gives the station one consistent sign system.
Final sizes, colors, display type, and site conditions must be confirmed before production.
Information Needed Before Requesting a Quote
Send the supplier:
- Logo file in AI, EPS, PDF, or SVG format
- Size, quantity, and number of display faces
- Site photos from each traffic direction
- Road speed, viewing distance, angle, and setback
- Fuel grades, price rows, number format, digit color, and digit height
- Local voltage, frequency, and control method
- Project location and weather conditions
- New-build or retrofit details
- Delivery address, target date, and required documents
For a retrofit, also send the opening size, depth, inside photos, wiring details, and frame condition. These details help the supplier prepare an accurate quote.
Frequently Asked Questions
How do I choose the digit size for an LED gas price sign?
Start where drivers should first read the price. Check road speed, distance, angle, setback, and blocked views. Ask the supplier to show the illuminated digit height on a scaled drawing. Do not choose from a catalogue alone.
Can LED price displays fit an existing pylon?
Often, yes. First check the opening, depth, mounting points, wiring, drainage, cooling, and service access. The frame and foundation must support the new display. A local inspection may be needed before reuse.
How can station staff update fuel prices?
Options include RF remote, wired control, computer software, LAN, mobile apps, and network systems. Functions depend on the controller. Confirm the working distance, user access, and number of signs. Point-of-sale connection is a separate requirement.
What Should I Specify for Weather Resistance?
Share the local temperature range and exposure to rain, dust, sun, salt, wind, or snow. Ask about sealing, drainage, cooling, cable entry, and corrosion protection. Check whether the weather rating covers one part or the full sign.
Who Handles Installation and Local Approval?
It depends on the contract. The manufacturer may provide drawings and installation guidance. Local teams may handle permits, foundations, lifting, wiring, and inspections. Confirm each responsibility before accepting the quote.
Conclusion
LED signs work well when each unit has a clear purpose and approved details. The main priority is a clear, easy-to-update fuel price display. It must suit the pylon, road, power supply, service plan, and local rules.
