For the SURE petrol station canopy signage project, red does most of the visual work. A white illuminated band runs through the fascia, while the illuminated SURE logo provides the main focal point.
This Australian project focused on the canopy’s branding layer: fascia, lighting detail and logo signage. The load-bearing roof structure was outside the signage scope.
Project Overview
| Project item | Details |
|---|---|
| Brand | SURE |
| Market | Australia |
| Application | Petrol station forecourt canopy |
| Signage scope | Red fascia, continuous white illuminated band and illuminated SURE logo |
| Design direction | A clear red-and-white identity across the canopy elevations |
| Supply focus | Custom canopy signage and illuminated branding components |
The Design Brief: Make the Canopy Read as One Brand
A petrol station canopy is rarely viewed from one fixed position. Drivers see it at an angle, and each corner changes the relationship between the logo, fascia and light line.
The SURE design uses only a few visual elements, which makes alignment especially important. A misplaced logo, a break in the white band or an awkward panel joint would stand out against the large red surface. The design therefore had to read as one composition rather than a collection of separate signs.
The Petrol Station Canopy Signage Solution
Red Fascia as the Main Brand Field
The red fascia gives the canopy its dominant identity. Along a long elevation, plan section breaks and corners so the colour field remains clean after you join the components.
A Continuous White Illuminated Band
The white band gives the canopy a second recognition cue. Continuity matters more than excessive brightness: the line needs to stay level across fascia sections and turn corners cleanly. Therefore, we resolve junctions, cable exits, and service access before production.
An Illuminated SURE Logo
The SURE logo is the main identification point within the red fascia. Its scale and position leave clear space around the white band and nearby joints. Approved vector artwork sets the proportions, but you must still review the logo at full elevation scale.
Coordinating the Design Before Production
Artwork, panel layout and electrical details were coordinated in the same drawing set. They placed the brand elements on the elevations first. They then mapped the panel divisions and corner returns to the logo and light band. Cable routes and service access followed.
This order prevents a panel joint from cutting through the light line or pushing the logo away from its intended position. Even a small repeated offset becomes visible across a long canopy.

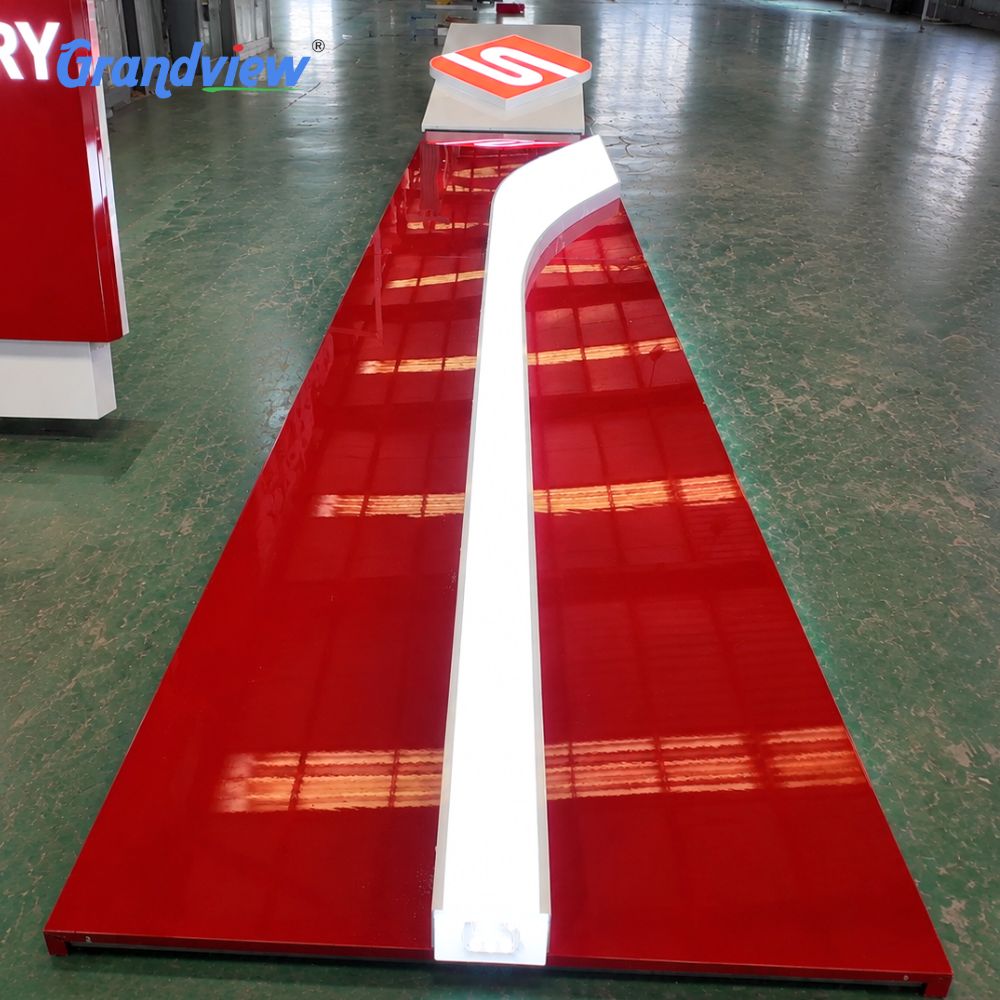

Factory Production and Quality Control
During production, the SURE fascia, light band and logo were handled as one visual system. Each component needed to match the approved red-and-white elevation and its assigned position.
For this type of custom petrol station canopy fascia, our production checks focus on the details that remain visible after assembly:
- Colour consistency across adjacent fascia sections
- Alignment of the illuminated band at section joints and corners
- Logo proportions and position against the elevation drawing
- Illumination across the logo face and light line
- Cable exits and access points against the electrical layout
- Surface protection and section identification before packing
Illuminated components are powered during inspection to check for dark areas, uneven output and wiring issues. Match section labels to the elevation so the site team can identify the assembly sequence. These visible checks say more about the work than broad quality claims.
Coordination for an Australian Site
Before Production Begins, the local team should verify canopy dimensions, fixing zones, cable access, voltage and maintenance space. The responsible Australian contractors then coordinate the final attachment and electrical work.
Requirements vary by location and scope. Standards Australia identifies AS/NZS 1170.2 as the Wind Actions standard and AS/NZS 3000:2018 as the Wiring Rules. The project engineer, electrician and local authority should confirm their application.
What This Project Shows
The SURE design works because each element has one job. The red fascia sets the brand colour. The white light line links the elevations. The logo gives customers a clear name to recognise.
It also explains why planners should design petrol station canopy signage as a system. Artwork, panel splits, lighting, wiring, and the site interface affect each other. Early coordination keeps production details clear and reduces avoidable site changes.
Planning a Similar Petrol Station Canopy Project
To review a similar project, we normally need:
- Vector logo files in AI, EPS, PDF or SVG format
- Brand colour references
- Canopy elevations and verified dimensions
- Site photos showing corners, fascia condition and fixing areas
- Logo quantity and preferred positions
- Local voltage and available cable routes
- Project location, delivery address and required schedule
These details let you review the fascia and lit elements against the real canopy, not a reference image.
